Thursday, May 30, 2024

Caterpillar Eating Desert Rose (Adenium Obesum, 富贵花)

Caterpillar Eating Desert Rose (Adenium Obesum, 富贵花)


  • It's called 'Euploea core'. Also known as the 'common crow'.
  • Description from Wikipedia: a glossy-black, medium sized 85-95 mm butterfly with rows of white spots on the margins of its wings. A slow, steady flier.

Posted by at No comments:
Labels:

Tuesday, May 21, 2024

Travel Proposal: Day Trip (Hop-On Hop-Off Trip)

Day Trip (Hop-On Hop-Off Trip)

  • Proposal for half-day / 1-day trip. Customized for a group of friends.
  • Concept: Hop-On Hop-Off (HoHo) as follow your own schedule
  • Subject to changes from time to time


Itinerary:

Plan A: 1-Day (might be very tiring...)


Plan B: Half-Day (Morning)

Plan C: Half-Day (Afternoon)

More info to be added later...
Posted by at No comments:
Labels: ,

Monday, May 20, 2024

Travel Proposal: Tasik Laban @ Lenggong

A Proposal for Next Family / Group Retreat

Tasik Laban - Perak Hidden Gems, located in between Kuala Kangsar & Gerik, Perak.


Main Attractions:

Other Attractions Nearby / Outside Lenggong:

Eatery:

Accommodations:

Recommendations by other online resources:

YouTube:

Boat Cruise Operators:
Brochures:

...... to be continued for more info

Posted by at No comments:
Labels:

DIY Series 62: Plywood Water Filter Wrench

Use Plywood to Make Water Filter Opener Wrench


Photos:
  1. Plywood (18mm, 2ft x 2ft) with target wrench outline
  2. Tools & PPE required
  3. Cut the plywood into 2 pieces accordingly
  4. Start to cut the wrench following the outline
  5. Drill a hole for inner outline cutting
  6. Wrench with hole ready for inner outline cutting
  7. Inner outline (round shape) cutting done
  8. Trimming on one of the desired slots (total of 4 slots required)
  9. Plywood wrench is completed
  10. Available for sell at Mudah.my (Search for "Plywood Wrench")









Standard version

Custom made extended version (Date: 2024-11-03)

Tools & PPE required:
Posted by at No comments:
Labels:

Monday, May 06, 2024

Travel by Train (ETS) - Butterworth to KL Sentral

Travel by Train (ETS) - Butterworth to KL Sentral / KL Sentral to Butterworth

The following info were taken from other online sources, with my own inputs added as final compilation, just to keep a copy here for future reference.

Electric Train Service (ETS) Train Service

ETS train upgrades in 2022 and new train sets facilitate 6 dedicated services daily, in each direction (Butterworth - KL Sentral), which is currently (May 2024) follow this timetable:

The journey takes a little over 4 hours. In my personal experience, it keeps to the time as per the schedule. This is the full ETS Schedule (as of May 2024).

ETS Train Naming

  • ETS Types
    • EPxxxx: ETS Platinum
    • EGxxxx: ETS Gold
    • ESxxxx: ETS Silver
  • ETS Route
    • Ex90xx: ETS (Ipoh - KL Sentral)
    • Ex91xx: ETS (Butterworth - KL Sentral)
    • Ex92xx: ETS (Padang Besar - KL Sentral)
    • Ex93xx: ETS (Butterworth - Gemas)
    • Ex94xx: ETS (Padang Besar - Gemas)

Selecting Your Seat

The trains have 6 coaches with a driver cab at either end. Coach A generally leads when travelling South, Coach F has the driver when heading North. Confirm this as you approach the train, there will be a sign pointing to the direction of the carriages.

Choose the correct direction for your seating will gives you a more comfortable journey via ETS. I will normally choose the forward direction AND according to the sun direction during the whole journey (to avoid direct sunlight via the window). Besides, I personally preferred Window Seat than Aisle Seat.


Comparison of ETS (Old) vs ETS2 (New) Seating

There are some changes on the ETS2 (New) seating arrangement. Please take note.
Anyhow, you are able to see the actual seating arrangement when you are login in online to buy the ticket.


Onboard Facilities

You may refer to this link for onboard facilities. I normally will use the Power Outlet (for phone charging), washroom and F&B Bistro (occasionally).

Buying Tickets

You can choose to buy via following channels:

How to Book Online & Choose Your Seat

  • Login to https://online.ktmb.com.my or use KTMB Mobile App.
  • Input Origin / Destination / Departure Date / Pax.
  • Click "Search" to proceed.
  • Choose your Target Train of the selected date. [ Example: Platinum - 9173 ]
  • Click "Pick Seats" to proceed.
  • Select the Target Coach of the selected train. [ Example: Coach D ]
  • You may choose "W" (Window Seat) or "A" (Aisle Seat).
  • Select the Target Seat of the selected coach. [ Example: 7A ]
  • Seat 7A is facing forward and it is a Window Seat.
  • The fare amount will be displayed, you may proceed to "Confirm Seats".
  • Click "Proceed to Passenger Details"
  • Fill in the required info of the passenger. Click "Proceed to Payment".
  • You will be asked to choose Takaful Plan (Basic or Premium Plan) or "No Thanks".
  • Proceed for payment and you will be provided ETS Ticket with QR Code
  • Payment Methods: KTM Wallet / Credit Card / Debit Card / e-Wallet
  • Additional Notes:
    • W: Window Seat
    • A: Aisle Seat
    • F: Female Passenger
    • M: Male Passenger
    • Forward Facing Seat: Seats with "U", e.g.: 6A, 6B, 6C, 6D
    • Backward Facing Seat: Seats with "U" upside down, e.g.: 8A, 8B, 8C, 8D
    • Selected Seat: Seat with tick / green colour, e.g.: 7A
    • Unavailable Seat: Seat with "X" (disabled for selection).

ETS Ticket with QR Code (Example)

You may use KTMB Mobile App to scan QR at ACG (Automated Control Gate) or show to the conductor during boarding.


Departing from Butterworth (Penang Sentral)
  1. At Penang Sentral (1st Floor), turn left when you see KFC restaurant outlet
  2. Walk straight along the pathway towards KTM Butterworth
  3. At the end of the pathway, take the escalator / staircase up to 1st Floor
  4. You may opt to buy ticket at the TVM (Ticket Vending Machine) if you didn't buy online
  5. Scan your ticket QR at ACG (Automated Control Gate) to enter the platform
  6. You may wait the train at the Waiting Room if it is still early
  7. Announcement will be made when the train arrive, prepare for boarding







Posted by at 1 comment:
Labels:

DIY Series 61: Fixing Elba Oven That Causing Power Trip

Elba Oven (Model: EEO-H3616) Power Trip

Symptoms:

  • Power Trip when power on with Lower Heating Element Mode.
  • Suspect heating element is shorted (caused by moisture) due to oven not in use for long period of time

Findings:

  • Checked the power line (at power plug), no short circuit at N (Neutral) / L (Live) / E (Earth or GND)
  • Checked the heating element, detected inner and outer layer of heating element are shorted

Video:

  1. Elba Oven is working fine after fixing done

Photos:

  1. Elba Oven (Model: EEO-H3616)
  2. Wiring diagram of 3-pin plug
  3. Checking connectivity of 3-pin plug (unplug oven from power point)
  4. Dismantle the metal housing and rubber stand from the oven
  5. Checking connectivity of the heating element (lower heating element detected shorted between inner and outer layer)
  6. Disconnect GND terminal, power ON and run the oven for 30min at 250C (1st Round: Lower, 2nd Round: Upper + Lower). This test is to prevent Power Trip during power on for repair process. The heating element expected to be back to normal after 30min on high temperature operation, to clear any short circuit due to humidity issue.

  • After testing done, power OFF and reconnect back the GND on the 3-pin plug.
  • Wait for the oven to cool down and turn ON again for normal operation check.






Tools required:

Cost involved:

  • NIL
Recommendation:
  • If the oven is expected not in use for long period of time, try to turn it ON once a month just to heat up it without anything inside, to prevent short circuit of heating elements.
Tubular Heating Element [Source: Wikipedia]:
  • Tubular or sheathed elements normally comprise a fine coil of resistance wire surrounded by an electrical insulator and a metallic tube-shaped sheath or casing.
  • Insulation is typically a magnesium oxide powder, and the sheath is normally constructed of a copper or steel alloy.
  • To keep moisture out of the hygroscopic insulator, the ends are equipped with beads of insulating material such as ceramic or silicone rubber, or a combination of both.
  • The tube is drawn through a die to compress the powder and maximize heat transmission.
  • These can be a straight rod (as in toaster ovens) or bent to a shape to span an area to be heated (such as in electric stoves, ovens, and coffee makers).


Posted by at No comments:
Labels:

Thursday, May 02, 2024

DIY Series 60: Repair Noxxa Breadmaker Oven (Model: BM315SC)

Noxxa Breadmaker Oven (Model: BM315SC)


Symptoms:

  • Upper heating (front side) element not working
  • Sometimes 3 times beep sound (Error) after Power ON

Findings:

  • Upper heating element (front side) broken
  • Door latch mechanism loosen, door close detection not working

Photos:

  1. Noxxa Breadmaker Oven (Model: BM315SC)

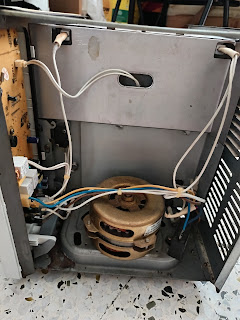

  2. After remove the top metal housing. There are 2 special security screws at the bottom of the metal housing.
  3. Remove the Main PCB from front panel
  4. Found a dead lizard between front panel and Main PCB. No damage to any functionality.
  5. Remove the top cover, the upper heating element was broken, reconnect it with overlapping a small portion of it to make it connected again
  6. Unscrew 4 screws, take out the metal plate, adjust (push to slightly lower) the door latch mechanism so that it can contact the plate just right under it.
  7. Security screws (flanged button head screws). I changed it to normal screws after removed it.







Tools required:

Cost involved:

  • NIL

Posted by at No comments:
Labels:
