Panasonic Washing Machine (NA-F70S7) pulsator was stuck / jammed due to accumulated dirt and rusted. However, the drum was dirty, and it needs a cleaning service.
Many approaches had been found online and I had tried most of them but yet still failed to dismantle the pulsator (and its bush!) from the washing machine.
Example:
- Use a string to pull out the pulsator
- Use special tools to remove the pulsator
- Use heat gun to heat up the pulsator's bush (if you managed to unscrew and removed the pulsator)
Finally, I decided to use my own way, with replacement needed for pulsator and mechanism gear unit.
Photos:
- Panasonic NA-F70S7 Washing Machine
- Cut the pulsator with help of drill and mini saw (need to be replaced with new OEM pulsator)
- Tried to remove the pulsator's bush (jammed) but failed
- Dismantle the tub nut using special wrench for washing machine
- Tub Nut & Special Wrench
- Dismantle the bottom cover
- Dismantle protective cover of mechanism gear unit
- Dismantle the mechanism gear unit
- Remove the rubber belt
- Remove the mechanism gear unit
- New mechanism gear unit (OEM Set)

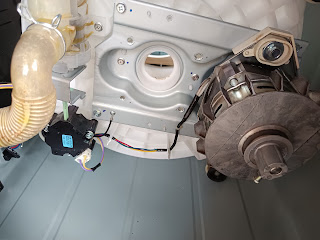

- Location to insert new mechanism gear unit
- Cleaning of drum and tub (before vs after)
Tools:
- Screwdriver
- Electric Drill & Mini Saw
- T-Shape Wrench
- Special Wrench for Tub Nut removal
- Special tools for pulsator removal (optional, depends on the situation)
- Heat gun (optional, depends on the situation)
- Hammer (optional, depends on the situation)
Costs Involved:
- Pulsator: US$7
- Mechanism Gear Unit: US$28
